• Controller hardware

• VHDL style

• Signals and resolutions

• State descriptions

• Complete CPU

• Testing CPU

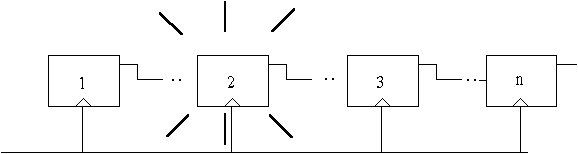

• Only one hot state at a given time

• Easier design,

• No need for encoding states

• No need for decoding control lines

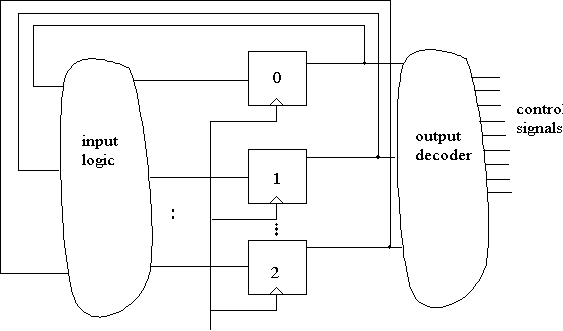

• Encoded state machine

• Requires more output and input logic

• Requires fewer flip-flops


• We will use a one hot controller

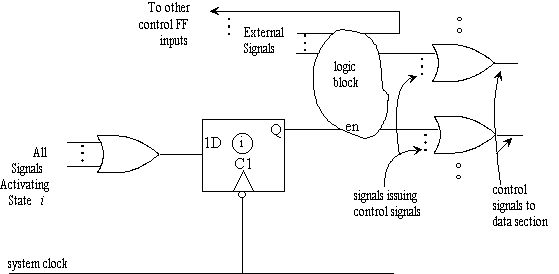

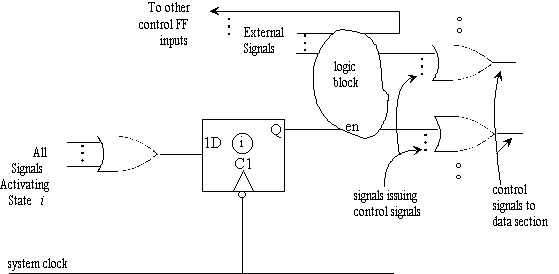

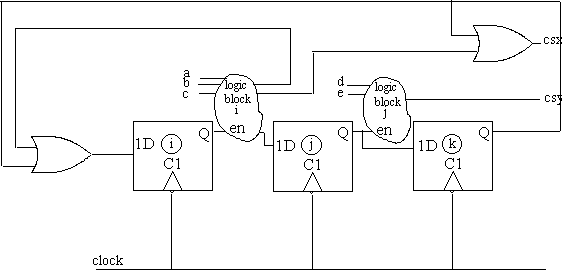

• Hardware surrounding a control flip-flop

• A control flip-flop conditionally activates control signals

• Control signals are issued by various control flip-flops

• Use OR gate for oring same-name control signals

• All signals activating a control flip-flop are ored


• Three control states and corresponding logic

• csy conditionally issued by j

• csx conditionally issued by i also unconditionally issued by k


ARCHITECTURE multiple_state_machine OF detector IS

SIGNAL s : ored_bit_vector (1 TO 4) REGISTER := "1000";

BEGIN

clocking : BLOCK (clk = '1' AND NOT clk'STABLE)

BEGIN

s1: BLOCK (s(1) = '1' AND GUARD)

BEGIN

s(1) <= GUARDED '1' WHEN x = '0' ELSE '0';

s(2) <= GUARDED '1' WHEN x = '1' ELSE '0';

END BLOCK s1;

s2: BLOCK (s(2) = '1' AND GUARD)

BEGIN

s(3) <= GUARDED '1' WHEN x = '0' ELSE '0';

s(2) <= GUARDED '1' WHEN x = '1' ELSE '0';

END BLOCK s2;

s3: BLOCK (s(3) = '1' AND GUARD)

BEGIN

s(1) <= GUARDED '1' WHEN x = '0' ELSE '0';

s(4) <= GUARDED '1' WHEN x = '1' ELSE '0';

END BLOCK s3;

s4: BLOCK (s(4) = '1' AND GUARD)

BEGIN

s(3) <= GUARDED '1' WHEN x = '0' ELSE '0';

s(2) <= GUARDED '1' WHEN x = '1' ELSE '0';

z <= '1' WHEN (s(4) = '1' AND x = '1') ELSE '0';

END BLOCK s4;

s <= GUARDED "0000";

END BLOCK clocking;

END multiple_state_machine;

• State machine description style

• A guarded block for each state


sn: Block (guard on state n)
BEGIN
issue control signals
.
.
.
ck: Block (guard on clock)
issue next state;
END Block ck;
END Block sn;

• Issue control signals in each state

• A guarded block guards next state assignment

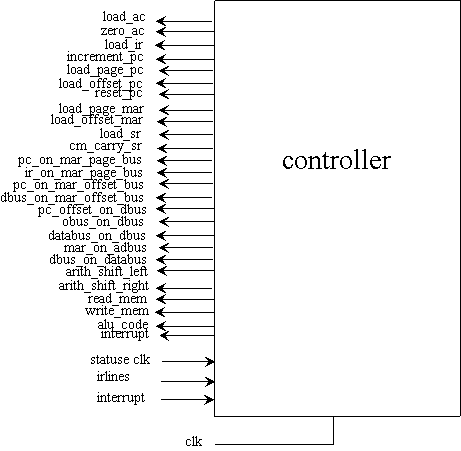

• Controller issues signals used by data

• Decisions made based on ir_lines


ARCHITECTURE dataflow OF par_control_unit IS

-- oring is implied in the following signals (oi)

SIGNAL load_ac_oi, zero_ac_oi,

load_ir_oi,

increment_pc_oi, load_page_pc_oi, load_offset_pc_oi, reset_pc_oi,

load_page_mar_oi, load_offset_mar_oi,

load_sr_oi, cm_carry_sr_oi,

pc_on_mar_page_bus_oi, ir_on_mar_page_bus_oi,

pc_on_mar_offset_bus_oi, dbus_on_mar_offset_bus_oi,

pc_offset_on_dbus_oi, obus_on_dbus_oi, databus_on_dbus_oi,

mar_on_adbus_oi,

dbus_on_databus_oi,

arith_shift_left_oi, arith_shift_right_oi,

read_mem_oi, write_mem_oi : ored_qit BUS;

SIGNAL alu_code_oi : ored_qit_vector (2 DOWNTO 0) BUS;

SIGNAL s : ored_qit_vector (9 DOWNTO 1) REGISTER := "000000001";

• Use resolved signals to imply oring

• Multiple assignments to oi signals are ored

• Declare s as a register of 9 states


FUNCTION oring ( drivers : qit_vector) RETURN qit;
SUBTYPE ored_qit IS oring qit;
TYPE ored_qit_vector IS ARRAY (NATURAL RANGE <>) OF ored_qit;
(a)

FUNCTION oring ( drivers : qit_vector) RETURN qit IS
VARIABLE accumulate : qit := '0';
BEGIN
FOR i IN drivers'RANGE LOOP
accumulate := accumulate OR drivers(i);
END LOOP;
RETURN accumulate;
END oring;
(b)

• Use oring resolution function

• All assignments to same state are ored

• All assignments to same control lines are ored


• Ored signals control flow of data in the data section

• Ored signals make appropriate state transitions

• Data and control signals follow the same timing

• Control signals are active from one falling edge to another

• One period allows propagation through logic and buses


BEGIN

-- implied or assignments to output signals

load_ac <= load_ac_oi;

zero_ac <= zero_ac_oi;

load_ir <= load_ir_oi;

increment_pc <= increment_pc_oi;

load_page_pc <= load_page_pc_oi;

load_offset_pc <= load_offset_pc_oi;

reset_pc <= reset_pc_oi;

load_page_mar <= load_page_mar_oi;

load_offset_mar <= load_offset_mar_oi;

load_sr <= load_sr_oi;

cm_carry_sr <= cm_carry_sr_oi;

pc_on_mar_page_bus <= pc_on_mar_page_bus_oi;

ir_on_mar_page_bus <= ir_on_mar_page_bus_oi;

pc_on_mar_offset_bus <= pc_on_mar_offset_bus_oi;

dbus_on_mar_offset_bus <= dbus_on_mar_offset_bus_oi;

pc_offset_on_dbus <= pc_offset_on_dbus_oi;

obus_on_dbus <= obus_on_dbus_oi;

databus_on_dbus <= databus_on_dbus_oi;

mar_on_adbus <= mar_on_adbus_oi;

dbus_on_databus <= dbus_on_databus_oi;

arith_shift_left <= arith_shift_left_oi;

arith_shift_right <= arith_shift_right_oi;

read_mem <= read_mem_oi;

write_mem <= write_mem_oi;

alu_code <= qit_vector (alu_code_oi);

• Make assignments to do type conversion


s1: BLOCK (s(1) = '1')

BEGIN -- start of fetch

-- pc to mar

pc_on_mar_page_bus_oi <= GUARDED '1';

pc_on_mar_offset_bus_oi <= GUARDED '1';

load_page_mar_oi <= GUARDED '1';

load_offset_mar_oi <= GUARDED '1';

-- reset pc if interrupt

reset_pc_oi <= GUARDED '1' WHEN interrupt = '1' ELSE '0';

-- goto 2 if interrupt is off

ck: BLOCK ( (clk = '0' AND NOT clk'STABLE) AND GUARD )

BEGIN

s(1) <= GUARDED '1' WHEN interrupt = '1' ELSE '0';

s(2) <= GUARDED '1' WHEN interrupt /= '1' ELSE '0';

END BLOCK ck;

END BLOCK s1;

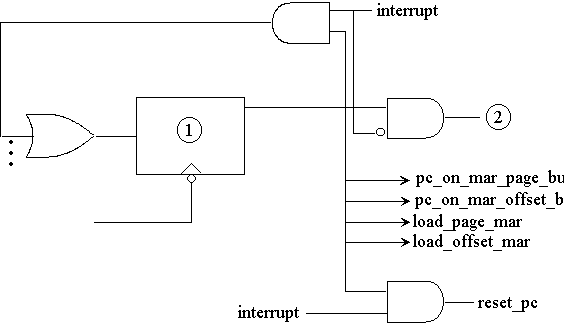

• Start to fetch in state 1

• Transfer pc to mar via mar_bus

• Stay in state 1 if interrupted


s2: BLOCK (s(2) = '1')

BEGIN -- fetching continues

-- read memory into ir

mar_on_adbus_oi <= GUARDED '1';

read_mem_oi <= GUARDED '1' AFTER read_delay;

databus_on_dbus_oi <= GUARDED '1';

alu_code_oi <= GUARDED ored_qit_vector (a_input);

load_ir_oi <= GUARDED '1';

-- increment pc

increment_pc_oi <= GUARDED '1';

-- goto 3

ck: BLOCK ( (clk = '0' AND NOT clk'STABLE) AND GUARD )

BEGIN

s(3) <= GUARDED '1';

END BLOCK ck;

END BLOCK s2;

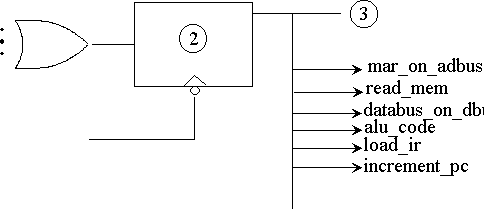

• Continue to fetch instruction

• Read memory into ir


s3: BLOCK (s(3) = '1')

BEGIN

-- pc to mar, for next read

pc_on_mar_page_bus_oi <= GUARDED '1';

pc_on_mar_offset_bus_oi <= GUARDED '1';

load_page_mar_oi <= GUARDED '1';

load_offset_mar_oi <= GUARDED '1';

-- goto 4 if not single byte instruction

ck: BLOCK ( (clk = '0' AND NOT clk'STABLE) AND GUARD )

BEGIN

s(4) <= GUARDED '1' WHEN ir_lines (7 DOWNTO 4) /= "1110" ELSE '0';

END BLOCK ck;

-- perform single byte instructions

sb: BLOCK ( (ir_lines (7 DOWNTO 4) = "1110") AND GUARD)

BEGIN

alu_code_oi <= GUARDED

ored_qit_vector (b_compl) WHEN ir_lines (1) = '1' ELSE

ored_qit_vector (b_input);

arith_shift_left_oi <= GUARDED

'1' WHEN ir_lines (3 DOWNTO 0) = "1000" ELSE '0';

arith_shift_right_oi <= GUARDED

'1' WHEN ir_lines (3 DOWNTO 0) = "1001" ELSE '0';

load_sr_oi <= GUARDED

'1' WHEN ( ir_lines (3) = '1' OR ir_lines (1) = '1' ) ELSE '0';

cm_carry_sr_oi <= GUARDED '1' WHEN ir_lines (2) = '1' ELSE '0';

load_ac_oi <= GUARDED

'1' WHEN ( ir_lines (3) = '1' OR ir_lines (1) = '1' ) ELSE '0';

zero_ac_oi <= GUARDED

'1' WHEN ( ir_lines (3) = '0' AND ir_lines (0) = '1' ) ELSE '0';

ck: BLOCK ( (clk = '0' AND NOT clk'STABLE) AND GUARD )

BEGIN

s(2) <= GUARDED '1';

END BLOCK ck;

END BLOCK sb;

END BLOCK s3;

• For two byte instructions:


• For single byte instructions:

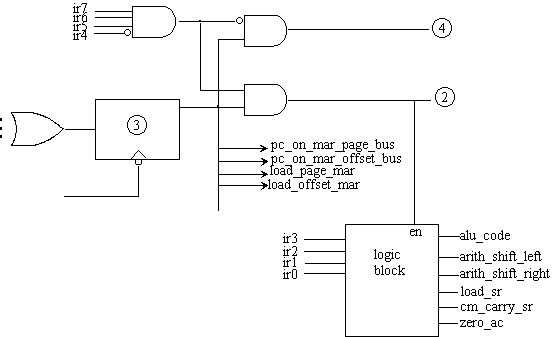

• Hardware for state3

• Logic block is enabled to do single_byte instructions

• pc to mar transfer takes place


s4: BLOCK (s(4) = '1')

BEGIN -- page from ir, and offset from next memory makeup 12-bit address

-- read memory into mar offset

mar_on_adbus_oi <= GUARDED '1';

read_mem_oi <= GUARDED '1' AFTER read_delay;

databus_on_dbus_oi <= GUARDED '1';

dbus_on_mar_offset_bus_oi <= GUARDED '1';

load_offset_mar_oi <= GUARDED '1'; -- completed operand (dir/indir) address

-- page from ir if not branch or jsr

pg: BLOCK ( (ir_lines (7 DOWNTO 6) /= "11") AND GUARD)

BEGIN

ir_on_mar_page_bus_oi <= GUARDED '1';

load_page_mar_oi <= GUARDED '1';

-- goto 5 for indirect, 6 for direct

ck: BLOCK ( (clk = '0' AND NOT clk'STABLE) AND GUARD )

BEGIN

s(5) <= GUARDED '1' WHEN ir_lines (4) = '1' ELSE '0'; -- indir

s(6) <= GUARDED '1' WHEN ir_lines (4) = '0' ELSE '0'; -- direct

END BLOCK ck;

END BLOCK pg;

-- keep page in mar_page if jms or bra (same-page instructions)

sp: BLOCK ( (ir_lines (7 DOWNTO 6) = "11") AND GUARD)

BEGIN

-- fot 7 for jsr, 9 for bra

ck: BLOCK ( (clk = '0' AND NOT clk'STABLE) AND GUARD )

BEGIN

s(7) <= GUARDED '1' WHEN ir_lines (5) = '0' ELSE '0'; -- jsr

s(9) <= GUARDED '1' WHEN ir_lines (5) = '1' ELSE '0'; -- bra

END BLOCK ck;

END BLOCK sp;

-- increment pc

increment_pc_oi <= GUARDED '1';

END BLOCK s4;

• Get operand for page and full instructions

• For full address : use page from ir, offset from mar

• For page address: keep mar page unchanged

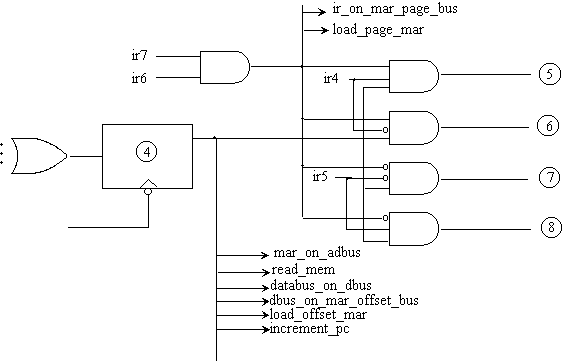

• Hardware for state 4

• ir to mar occurs only when ir(7:6)=11


s5: BLOCK (s(5) = '1')

BEGIN -- indirect addressing

-- read actual operand from memory into mar offset

mar_on_adbus_oi <= GUARDED '1';

read_mem_oi <= GUARDED '1' AFTER read_delay;

databus_on_dbus_oi <= GUARDED '1';

dbus_on_mar_offset_bus_oi <= GUARDED '1';

load_offset_mar_oi <= GUARDED '1';

-- goto 6

ck: BLOCK ( (clk = '0' AND NOT clk'STABLE) AND GUARD )

BEGIN

s(6) <= GUARDED '1';

END BLOCK ck;

END BLOCK s5;

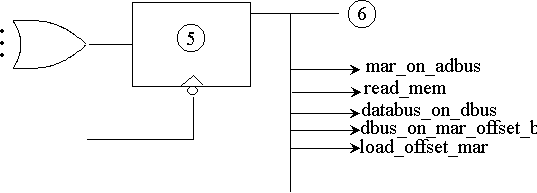

• Access memory with full address for indirect

• Load byte from memory to mar offset


s6: BLOCK (s(6) = '1')

BEGIN

jm : BLOCK ( (ir_lines (7 DOWNTO 5) = "100" ) AND GUARD

BEGIN

... perform jmp

END BLOCK jm;

st: BLOCK ( (ir_lines (7 DOWNTO 5) = "101") AND GUARD)

BEGIN

... perform sta

END BLOCK st;

rd: BLOCK ( (ir_lines (7) = '0') AND GUARD)

BEGIN

... perform lda, and, add, sub

END BLOCK rd;

END BLOCK s6;

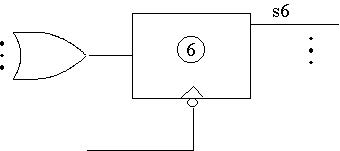

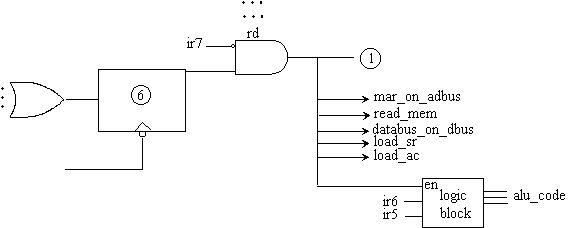

• Full address instructions are handled here

• Three separate blocks for


Controller.state_descriptions

s6: BLOCK (s(6) = '1') BEGIN

jm: BLOCK ( (ir_lines (7 DOWNTO 5) = "100") AND GUARD)

BEGIN

load_page_pc_oi <= GUARDED '1';

load_offset_pc_oi <= GUARDED '1';

-- goto 2

ck: BLOCK ( (clk = '0' AND NOT clk'STABLE) AND GUARD )

BEGIN

s(2) <= GUARDED '1';

END BLOCK ck;

END BLOCK jm;

. . .

. . .

---

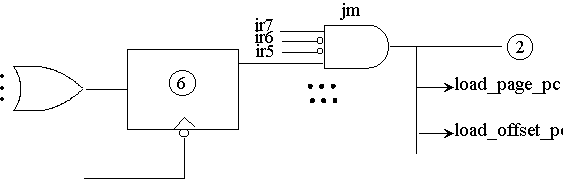

• Load pc with mar for jmp


---

Controller.state_descriptions

s6: BLOCK (s(6) = '1') BEGIN

. . .

st: BLOCK ( (ir_lines (7 DOWNTO 5) = "101") AND GUARD)

BEGIN

-- mar on adbus, ac on databus, write to memory

mar_on_adbus_oi <= GUARDED '1';

alu_code_oi <= GUARDED ored_qit_vector (b_input);

obus_on_dbus_oi <= GUARDED '1';

dbus_on_databus_oi <= GUARDED '1';

write_mem_oi <= GUARDED '1' AFTER write_delay;

-- goto 1

ck: BLOCK ( (clk = '0' AND NOT clk'STABLE) AND GUARD )

BEGIN

s(1) <= GUARDED '1';

END BLOCK ck;

END BLOCK st;

. . .

---

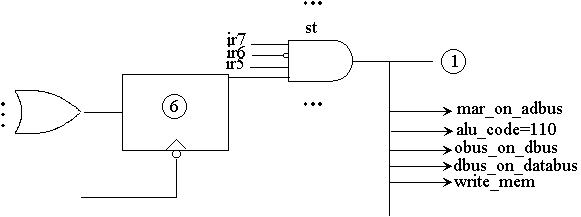

• For sta, write ac to memory via alu

• Assume writing is completed in one clock


---

Controller.state_descriptions

s6: BLO
