General.CPU_description.the_CPU

• PARWAN; PAR_1; A Reduced Processor

• Simple 8-bit CPU

• 8-bit Data; 12-bit Address

• Primarily designed for educational purposes

• Includes most common instructions

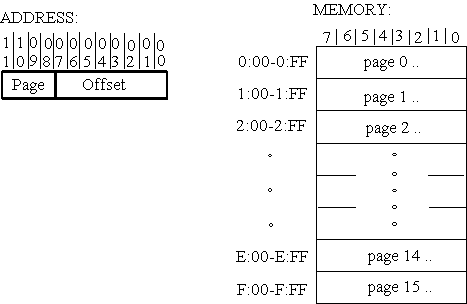

General.CPU_description.memory_organization

• Memory divided into pages

• Pages of 256 bytes

• Address has page and offset part

• Uses memory mapped IO

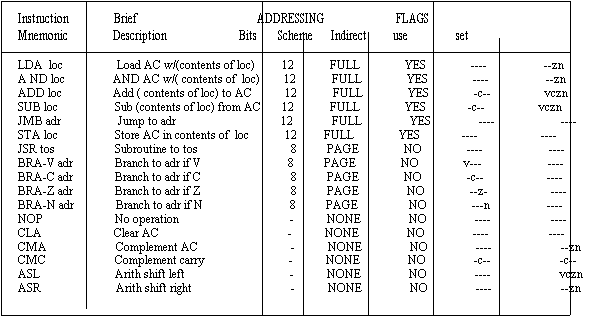

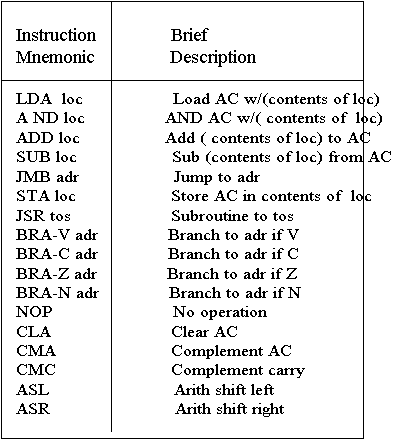

General.CPU_description.instructions

FULL Address; (12 bits) direct/indirect

LDA, AND, ADD, SUB, JMP, STA

PAGE Address, (8 bit)

JSR, BRA_V, BRA_C, BRA_Z, BRA_N

NO Address

NOP, CLA, CMA, CMC, ASL, ASR

• Three groups of instructions

• Full Address instructions include page and offset

• Page address instructions include offset

• No Address instructions occupy a single byte

General.CPU_description.instructions

• Load and store operations

• Arithmetic & logical operations

• jmp and branch instructions

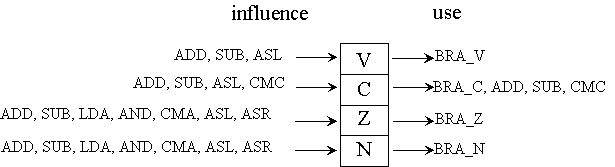

General.CPU_description.instructions

• CPU contains V C Z N flags

• Instructions use and/or influence these flags

General.CPU_description.instructions

• Arithmetic instructions influence all flags

• Branch instructions use corresponding flags

• Shift instructions influence all flags

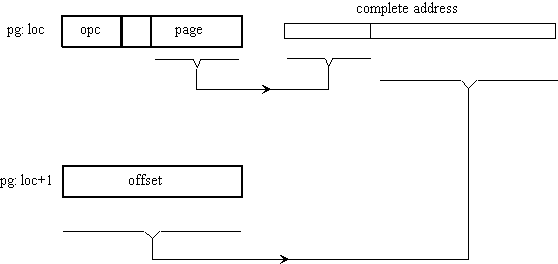

General.CPU_description.addressing

• Full address instructions use two bytes

• Right hand side of first byte is page

• Second byte contains offset

• Bit 4 is direct/indirect indicator

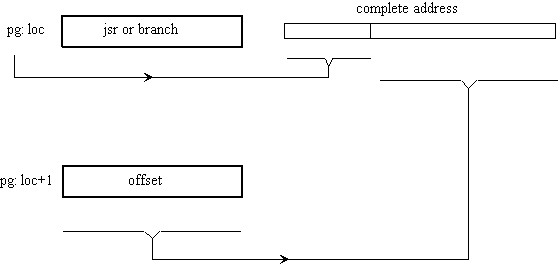

General.CPU_description.addressing

• Page address instructions use two bytes

• All of first byte is used by opcode

• Page part of address uses current page

• Second byte is the offset

General.CPU_description.addressing

BRANCH TO 6A if carry is set

c=0 : Next instruction from 5:0f

c=1 : Next instruction from 5:6A

• Branching is done within current page only

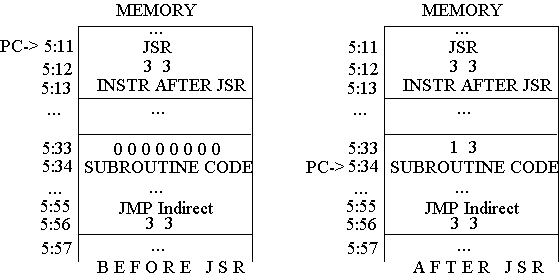

General.CPU_description.addressing

• Store jsr return address at tos

• Begin subroutine at tos+1

• Use indirect jmp to tos for return from subroutine

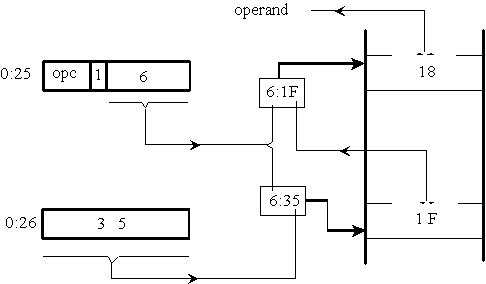

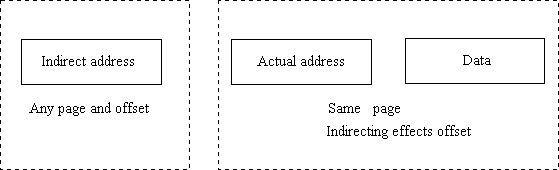

General.CPU_description.addressing

• Indirect addressing effects offset only

• To obtain actual address full addressing is used

• To obtain data page addressing is used

General.CPU_description.coding

0:15 cla -- clear accumulator

0:16 asl -- clears carry

0:17 add, i 4:00 -- add bytes

0:19 sta 4:03 -- store partial sum

0:1B lda 4:00 -- load pointer

0:1D add 4:02 -- increment pointer

0:1F sta 4:00 -- store pointer back

0:21 lda 4:01 -- load count

0:23 sub 4:02 -- decrement count

0:25 bra_z :2D -- end if zero count

0:27 sta 4:01 -- store count back

0:29 lda 4:03 -- get partial sum

0:2B jmp 0:17 -- go for next byte

0:2D nop -- adding completed

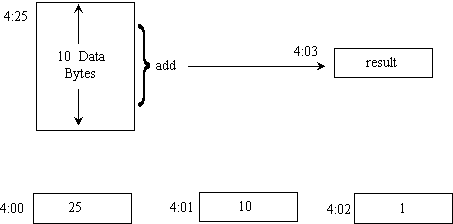

• A program to add 10 bytes

• Use location 4:00 for data pointer

• Use location 4:01 for counter

• Constant 1 in 4:02 is used for +1 and -1


General.CPU_description.coding

LIBRARY cmos;

USE cmos.basic_utilities.ALL;

--

PACKAGE par_utilities IS

FUNCTION "XOR" (a, b : qit) RETURN qit ;

--

FUNCTION "AND" (a, b : qit_vector) RETURN qit_vector;

FUNCTION "OR" (a, b : qit_vector) RETURN qit_vector;

FUNCTION "NOT" (a : qit_vector) RETURN qit_vector;

--

SUBTYPE nibble IS qit_vector (3 DOWNTO 0);

SUBTYPE byte IS qit_vector (7 DOWNTO 0);

SUBTYPE twelve IS qit_vector (11 DOWNTO 0);

--

SUBTYPE wired_nibble IS wired_qit_vector (3 DOWNTO 0);

SUBTYPE wired_byte IS wired_qit_vector (7 DOWNTO 0);

SUBTYPE wired_twelve IS wired_qit_vector (11 DOWNTO 0);

--

SUBTYPE ored_nibble IS ored_qit_vector (3 DOWNTO 0);

SUBTYPE ored_byte IS ored_qit_vector (7 DOWNTO 0);

SUBTYPE ored_twelve IS ored_qit_vector (11 DOWNTO 0);

--

CONSTANT zero_4 : nibble := "0000";

CONSTANT zero_8 : byte := "00000000";

CONSTANT zero_12 : twelve := "000000000000";

--

FUNCTION add_cv (a, b : qit_vector; cin : qit) RETURN qit_vector;

FUNCTION sub_cv (a, b : qit_vector; cin : qit) RETURN qit_vector;

--

FUNCTION set_if_zero (a : qit_vector) RETURN qit;

--

END par_utilities;

• Machine descriptions requires utilities

• Use basic_utilities

• Additional utilities are included in par_utilities


General.CPU_description.coding

PACKAGE body par_utilities IS

FUNCTION "XOR" (a, b : qit) RETURN qit IS

CONSTANT qit_or_table : qit_2d := (

('0','1','1','X'),

('1','0','0','X'),

('1','0','0','X'),

('X','X','X','X'));

BEGIN

RETURN qit_or_table (a, b);

END "XOR";

FUNCTION "AND" (a,b : qit_vector) RETURN qit_vector IS

VARIABLE r : qit_vector (a'RANGE);

BEGIN

loop1: FOR i IN a'RANGE LOOP

r(i) := a(i) AND b(i);

END LOOP loop1; RETURN r;

END "AND";

--

FUNCTION "OR" (a,b: qit_vector) RETURN qit_vector IS

VARIABLE r: qit_vector (a'RANGE);

BEGIN

loop1: FOR i IN a'RANGE LOOP

r(i) := a(i) OR b(i);

END LOOP loop1; RETURN r;

END "OR";

--

FUNCTION "NOT" (a: qit_vector) RETURN qit_vector IS

VARIABLE r: qit_vector (a'RANGE);

BEGIN

loop1: FOR i IN a'RANGE LOOP

r(i) := NOT a(i);

END LOOP loop1; RETURN r;

END "NOT";

• Define XOR in qit

• Overload logical operators with qit_vector


General.CPU_description.coding

--

FUNCTION add_cv (a, b : qit_vector; cin : qit) RETURN qit_vector IS

--left bits are sign bit

VARIABLE r, c: qit_vector (a'LEFT + 2 DOWNTO 0);

-- two extra bits in r are: msb for overflow, next carry

VARIABLE a_sign, b_sign: qit;

BEGIN

a_sign := a(a'LEFT); b_sign := b(b'LEFT);

r(0) := a(0) XOR b(0) XOR cin;

c(0) := ((a(0) XOR b(0)) AND cin) OR (a(0) AND b(0));

FOR i IN 1 TO (a'LEFT) LOOP

r(i) := a(i) XOR b(i) XOR c(i-1);

c(i) := ((a(i) XOR b(i)) AND c(i-1)) OR (a(i) AND b(i));

END LOOP;

r(a'LEFT+1) := c(a'LEFT);

IF a_sign = b_sign AND r(a'LEFT) /= a_sign

THEN r(a'LEFT+2) := '1'; --overflow

ELSE r(a'LEFT+2) := '0'; END IF; RETURN r;

END add_cv;

FUNCTION sub_cv (a, b : qit_vector; cin : qit) RETURN qit_vector IS

VARIABLE not_b : qit_vector (b'LEFT DOWNTO 0);

VARIABLE not_c : qit;

VARIABLE r : qit_vector (a'LEFT + 2 DOWNTO 0);

BEGIN

not_b := NOT b; not_c := NOT cin;

r := add_cv (a, not_b, not_c); RETURN r;

END sub_cv;

FUNCTION set_if_zero (a : qit_vector) RETURN qit IS

VARIABLE zero : qit := '1';

BEGIN

FOR i IN a'RANGE LOOP

IF a(i) /= '0' THEN zero := '0'; EXIT;

END IF;

END LOOP; RETURN zero;

END set_if_zero;

END par_utilities;

• add_cv adds its operands creates c and v bits

• Put overflow in leftmost result bit

• Put carry to the right of overflow


General.CPU_description.coding

LIBRARY cmos;

USE cmos.basic_utilities.ALL;

--

PACKAGE par_parameters IS

CONSTANT single_byte_instructions : qit_vector (3 DOWNTO 0) := "1110";

CONSTANT cla : qit_vector (3 DOWNTO 0) := "0001";

CONSTANT cma : qit_vector (3 DOWNTO 0) := "0010";

CONSTANT cmc : qit_vector (3 DOWNTO 0) := "0100";

CONSTANT asl : qit_vector (3 DOWNTO 0) := "1000";

CONSTANT asr : qit_vector (3 DOWNTO 0) := "1001";

CONSTANT jsr : qit_vector (2 DOWNTO 0) := "110";

CONSTANT bra : qit_vector (3 DOWNTO 0) := "1111";

CONSTANT indirect : qit := '1';

CONSTANT jmp : qit_vector (2 DOWNTO 0) := "100";

CONSTANT sta : qit_vector (2 DOWNTO 0) := "101";

CONSTANT lda : qit_vector (2 DOWNTO 0) := "000";

CONSTANT ann : qit_vector (2 DOWNTO 0) := "001";

CONSTANT add : qit_vector (2 DOWNTO 0) := "010";

CONSTANT sbb : qit_vector (2 DOWNTO 0) := "011";

END par_parameters;

• Assign appropriate names to opcodes

• par_parameters is used for readability


General.CPU_description.coding

Libraries

Interface

Architecture

• Description includes Interface and Architecture

• Use a single process for machine operation

General.CPU_description.interface

LIBRARY cmos;

USE cmos.basic_utilities.ALL;

LIBRARY par_library;

USE par_library.par_utilities.ALL;

USE par_library.par_parameters.ALL;

--

ENTITY par_central_processing_unit IS

GENERIC (read_high_time, read_low_time,

write_high_time, write_low_time : TIME := 2 US;

cycle_time : TIME := 4 US; run_time : TIME := 140 US);

PORT (clk : IN qit;

interrupt : IN qit;

read_mem, write_mem : OUT qit;

databus : INOUT wired_byte BUS := "ZZZZZZZZ"; adbus : OUT twelve

);

END par_central_processing_unit;

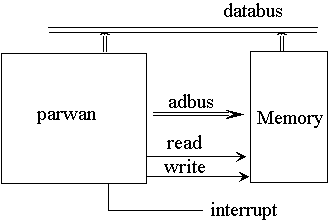

• Make packages visible

• Databus can be driven by Parwan and memory

• Use wiring resolution function

• Generic parameters specify relative read/write cycle time


General.CPU_description.behavioral

ARCHITECTURE behavioral OF par_central_processing_unit IS

BEGIN

PROCESS

Declare necessary variables;

BEGIN

IF NOW > run_time THEN WAIT; END IF;

IF interrupt = '1' THEN

Handle interrupt;

ELSE -- no interrupt

Read first byte into byte1, increment pc;

IF byte1 (7 DOWNTO 4) = single_byte_instructions THEN

Execute single_byte instructions;

ELSE -- two-byte instructions

Read secound byte into byte2, increment pc;

IF byte1 (7 DOWNTO 5) = jsr THEN

Execute jsr instruction, byte2 has address;

ELSIF byte1 (7 DOWNTO 4) = bra THEN

Execute bra instructions, address in byte2;

ELSE -- all other two-byte instructions

IF byte1 (4) = indirect THEN

Use byte1 and byte2 to get address;

END IF; -- ends indirect

IF byte1 (7 DOWNTO 5) = jmp THEN

Execute jmp instruction,

ELSIF byte1 (7 DOWNTO 5) = sta THEN

Execute sta instruction, write ac;

ELSE -- read operand for lda, and, add, sub

Read memory onto databus ;

Execute lda, and, add, and sub;

Remove memory from databus;

END IF; -- jmp / sta / lda, and, add, sub

END IF; -- jsr / bra / other double-byte instructions

END IF; -- single-byte / double-byte

END IF; -- interrupt / otherwise

END PROCESS;

END behavioral;

• A single process describes the machine

• IF_THEN_ELSE statements separate instructions


General.CPU_description.coding_individual_instructions

Declare necessary variables

VARIABLE pc : twelve;

VARIABLE ac, byte1, byte2 : byte;

VARIABLE v, c, z, n : qit;

VARIABLE temp : qit_vector (9 DOWNTO 0);

• Variables store internal information

• No hardware correspondence is specified


General.CPU_description.coding_individual_instructions

Handle interrupt

pc := zero_12;

WAIT FOR cycle_time;

Read first byte into byte1, increment pc

adbus <= pc;

read_mem <= '1'; WAIT FOR read_high_time;

byte1 := byte (databus);

read_mem <= '0'; WAIT FOR read_low_time;

pc := inc (pc);

• Interrupt handing: reset pc, wait a clock

• To read byte:


Put pc on address bus

Wait half a clock cycle

Read data bus

Remove read request

• End fetch by incrementing pc

General.CPU_description.coding_individual_instructions

Execute single_byte instructions

CASE byte1 (3 DOWNTO 0) IS

WHEN cla =>

ac := zero_8;

WHEN cma =>

ac := NOT ac;

IF ac = zero_8 THEN z := '1'; END IF;

n := ac (7);

WHEN cmc =>

c := NOT c;

WHEN asl =>

c := ac (7);

ac := ac(6) & ac (5 DOWNTO 0) & '0';

-- ac := ac (6 DOWNTO 0) & '0';

n := ac (7);

IF c /= n THEN v := '1'; END IF;

WHEN asr =>

ac := ac (7) & ac (7 DOWNTO 1);

IF ac = zero_8 THEN z := '1'; END IF;

n := ac (7);

WHEN OTHERS => NULL;

END CASE;

• Handing single_byte instructions, cla, cma, cmc, asl and asr

• Negative flag may be set for cma, asl and asr

• Zero flag may be set for cma, asl and asr

• For asl, overflow occurs it bits 6 & 7 differ


General.CPU_description.coding_individual_instructions

Read second byte into byte2, increment pc

adbus <= pc;

read_mem <= '1'; WAIT FOR read_high_time;

byte2 := byte (databus);

read_mem <= '0'; WAIT FOR read_low_time;

pc := inc (pc);

• Reading byte from memory

• Read_memory stays high for half a clock

• Memory releases the bus in the second half

• Right half of byte1 has page for full address

• Byte2 now has the offset of address


General.CPU_description.coding_individual_instructions

Execute jsr instruction, byte2 has address

databus <= wired_byte (pc (7 DOWNTO 0) );

adbus (7 DOWNTO 0) <= byte2;

write_mem <= '1'; WAIT FOR write_high_time;

write_mem <= '0'; WAIT FOR write_low_time;

databus <= "ZZZZZZZZ";

pc (7 DOWNTO 0) := inc (byte2);

• Handling jsr

• Page part of adbus still points to the same instruction page

• Write pc to page location pointed by byte2

• when writing is done, release the databus

• Load pc to start from byte2+1 (tos)


General.CPU_description.coding_individual_instructions

Execute bra instructions, address in byte2

IF

( byte1 (3) = '1' AND v = '1' ) OR

( byte1 (2) = '1' AND c = '1' ) OR

( byte1 (1) = '1' AND z = '1' ) OR

( byte1 (0) = '1' AND n = '1' )

THEN

pc (7 DOWNTO 0) := byte2;

END IF;

• Chock bits 3, 2, 1 and 0 against v, c, z, n flags

• Load pc with byte2 if match is found

• Page part of pc still holds some page


General.CPU_description.coding_individual_instructions

Use byte1 and byte2 to get address

adbus (11 DOWNTO 8) <= byte1 (3 DOWNTO 0);

adbus (7 DOWNTO 0) <= byte2;

read_mem <= '1'; WAIT FOR read_high_time;

byte2 := byte (databus);

read_mem <= '0'; WAIT FOR read_low_time;

• Use page of byte1, offset of byte2

• Form an address to fetch offset of operand

• Now byte1 & byte2 contain full operand address


General.CPU_description.coding_individual_instructions

Execute jmp instruction

pc := byte1 (3 DOWNTO 0) & byte2;

• Load pc with full 12-bit address

• Could use two assignments instead of &


General.CPU_description.coding_individual_instructions

Execute sta instruction, write ac

adbus <= byte1 (3 DOWNTO 0) & byte2;

databus <= wired_byte (ac);

write_mem <= '1'; WAIT FOR write_high_time;

write_mem <= '0'; WAIT FOR write_low_time;

databus <= "ZZZZZZZZ";

• Put full address on adbus

• Put ac on databus

• Issue write, when done, release databus


General.CPU_description.coding_individual_instructions

Read memory onto databus

adbus (11 DOWNTO 8) <= byte1 (3 DOWNTO 0);

adbus (7 DOWNTO 0) <= byte2;

read_mem <= '1'; WAIT FOR read_high_time;

CASE byte1 (7 DOWNTO 5) IS

WHEN lda =>

ac := byte (databus);

WHEN ann =>

ac := ac AND byte (databus);

WHEN add =>

temp := add_cv (ac, byte (databus), c);

ac := temp (7 DOWNTO 0);

c := temp (8);

v := temp (9);

WHEN sbb =>

temp := sub_cv (ac, byte (databus), c);

ac := temp (7 DOWNTO 0);

c := temp (8);

v := temp (9);

WHEN OTHERS => NULL;

END CASE;

IF ac = zero_8 THEN z := '1'; END IF;

n := ac (7);

read_mem <= '0'; WAIT FOR read_low_time;

• Full address on adbus

• Issue read_mem

• Perform lda, ann, add and sbb

• Arithmetic operations set c and v flags

• All operations set z and n flags


ARCHITECTURE behavioral OF par_central_processing_unit IS

BEGIN

PROCESS

VARIABLE pc : twelve;

VARIABLE ac, byte1, byte2 : byte;

VARIABLE v, c, z, n : qit;

VARIABLE temp : qit_vector (9 DOWNTO 0);

VARIABLE pc : twelve;

VARIABLE ac, byte1, byte2 : byte;

VARIABLE v, c, z, n : qit;

VARIABLE temp : qit_vector (9 DOWNTO 0);

BEGIN

IF NOW > run_time THEN WAIT; END IF;

IF interrupt = '1' THEN

pc := zero_12;

WAIT FOR cycle_time;

ELSE -- no interrupt

adbus <= pc;

read_mem <= '1'; WAIT FOR read_high_time;

byte1 := byte (databus);

read_mem <= '0'; WAIT FOR read_low_time;

pc := inc (pc);

IF byte1 (7 DOWNTO 4) = single_byte_instructions THEN

CASE byte1 (3 DOWNTO 0) IS

WHEN cla =>

ac := zero_8;

WHEN cma =>

ac := NOT ac;

IF ac = zero_8 THEN z := '1'; END IF;

n := ac (7);

WHEN cmc =>

c := NOT c;

WHEN asl =>

c := ac (7);

ac := ac (6 DOWNTO 0) & '0';

n := ac (7);

IF c /= n THEN v := '1'; END IF;

WHEN asr =>

ac := ac (7) & ac (7 DOWNTO 1);

IF ac = zero_8 THEN z := '1'; END IF;

n := ac (7);

WHEN OTHERS => NULL;

END CASE;

ELSE -- two-byte instructions

adbus <= pc;

read_mem <= '1'; WAIT FOR read_high_time;

byte2 := byte (databus);

read_mem <= '0'; WAIT FOR read_low_time;

pc := inc (pc);

• Complete behavioral description

• Part 1 of 2


IF byte1 (7 DOWNTO 5) = jsr THEN

databus <= wired_byte (pc (7 DOWNTO 0) );

adbus (7 DOWNTO 0) <= byte2;

write_mem <= '1'; WAIT FOR write_high_time;

write_mem <= '0'; WAIT FOR write_low_time;

databus <= "ZZZZZZZZ";

pc (7 DOWNTO 0) := inc (byte2);

ELSIF byte1 (7 DOWNTO 4) = bra THEN

IF ( byte1 (3) = '1' AND v = '1' ) OR ( byte1 (2) = '1' AND c = '1' ) OR

( byte1 (1) = '1' AND z = '1' ) OR ( byte1 (0) = '1' AND n = '1' )

THEN

pc (7 DOWNTO 0) := byte2;

END IF;

ELSE -- all other two-byte instructions

IF byte1 (4) = indirect THEN

adbus (11 DOWNTO 8) <= byte1 (3 DOWNTO 0);

adbus (7 DOWNTO 0) <= byte2;

read_mem <= '1'; WAIT FOR read_high_time;

byte2 := byte (databus);

read_mem <= '0'; WAIT FOR read_low_time;

END IF; -- ends indirect

IF byte1 (7 DOWNTO 5) = jmp THEN

pc := byte1 (3 DOWNTO 0) & byte2;

ELSIF byte1 (7 DOWNTO 5) = sta THEN

adbus <= byte1 (3 DOWNTO 0) & byte2;

databus <= wired_byte (ac);

write_mem <= '1'; WAIT FOR write_high_time;

write_mem <= '0'; WAIT FOR write_low_time;

databus <= "ZZZZZZZZ";

ELSE -- read operand for lda, and, add, sub

adbus (11 DOWNTO 8) <= byte1 (3 DOWNTO 0);

adbus (7 DOWNTO 0) <= byte2;

read_mem <= '1'; WAIT FOR read_high_time;

CASE byte1 (7 DOWNTO 5) IS

WHEN lda =>

ac := byte (databus);

WHEN ann =>

ac := ac AND byte (databus);

WHEN add =>

temp := add_cv (ac, byte (databus), c);

ac := temp (7 DOWNTO 0); c := temp (8); v := temp (9);

WHEN sbb =>

temp := sub_cv (ac, byte (databus), c);

ac := temp (7 DOWNTO 0); c := temp (8); v := temp (9);

WHEN OTHERS => NULL;

END CASE;

IF ac = zero_8 THEN z := '1'; END IF;

n := ac (7);

read_mem <= '0'; WAIT FOR read_low_time;

END IF; -- jmp / sta / lda, and, add, sub

END IF; -- jsr / bra / other double-byte instructions

END IF; -- single-byte / double-byte

END IF; -- interrupt / otherwise

END PROCESS;

END behavioral;

• Complete behavioral description

• part 2/2


General. conclusions

2. Review: Levels of abstraction, Entity and Architecture, Signal assignments, Guarded signal assignments, Three state bussing, Process statements, Combinational processes, Sequential processes, Multiplexing, Package

3. MSI Based Design: Use MSI parts of Part 2, Sequential multiplication, Designing the multiplier, Control and data parts, Testing the multiplier

4. General CPU Description: Will present a high level VHDL description of a small CPU. The CPU, Memory organization, Instructions, Addressing, Utilities for VHDL description, Interface, Behavioral description, Coding individual instructions

5. Manual Data_path Design: Will present VHDL description for manual design of data_path. Data components, Bussing structure, Description of logic, Description of registers, Bus resolutions, Component wiring

6. Manual Controller Design: Will present VHDL description for manual design of controller. Controller hardware, VHDL style, Signals and resolutions, State descriptions, Complete CPU, Testing CPU

7. Synthesis: Main concepts, Structural synthesis, Combinational circuits, Functional registers, State machines

8. Behavioral_Synthesis: Will present a high level synthesizable CPU description. Synthesis style, Necessary Package, Interface, General Layout, Registers, Clocking, Sequencing, Simulation and Synthesis

9. Dataflow_Synthesis: Will partition the CPU and synthesize each part separately. Synthesis style, Controller, Data components, Data path, Synthesized example, Conclusions
